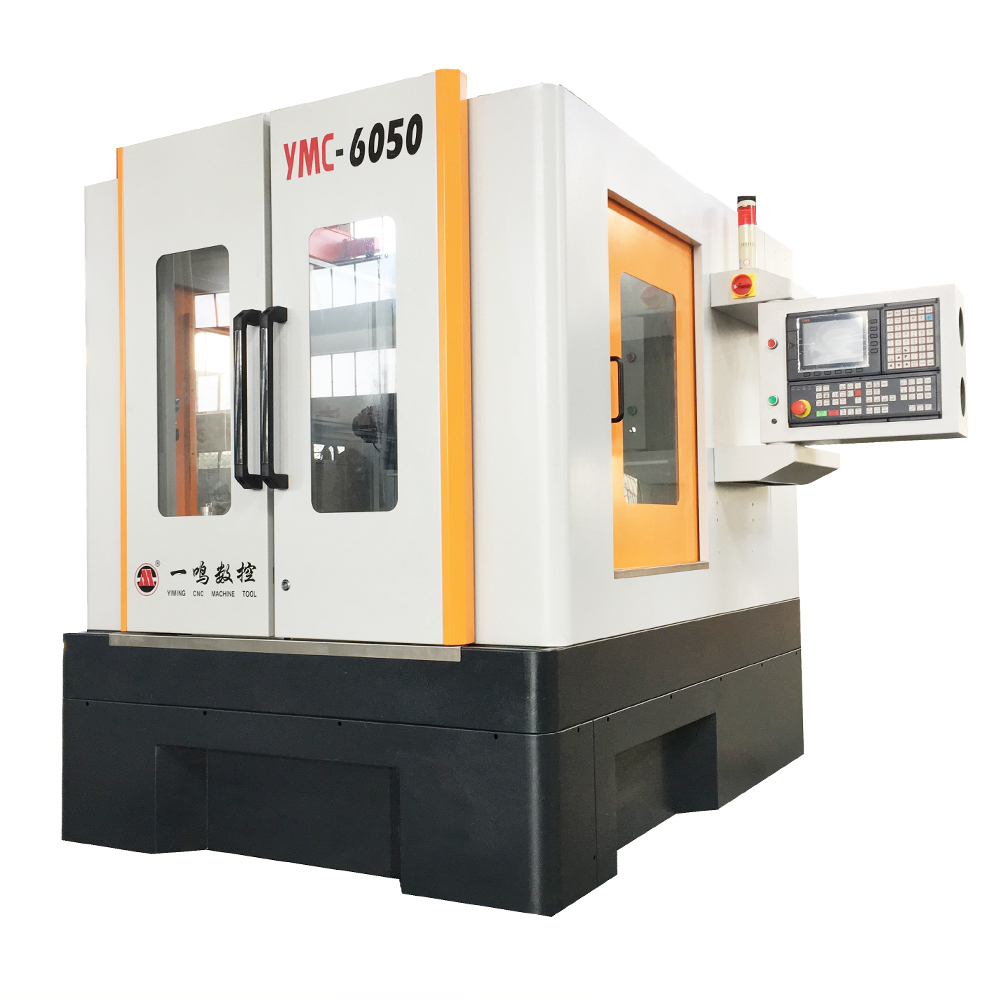

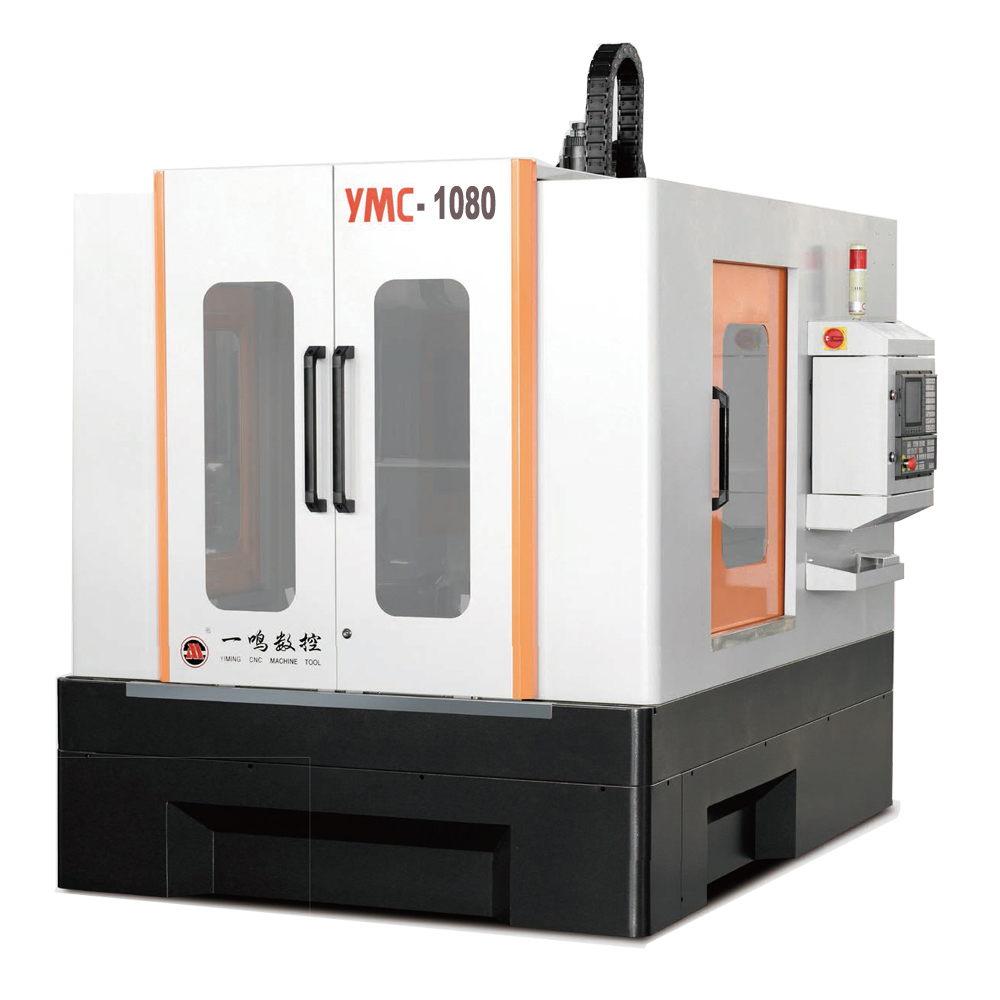

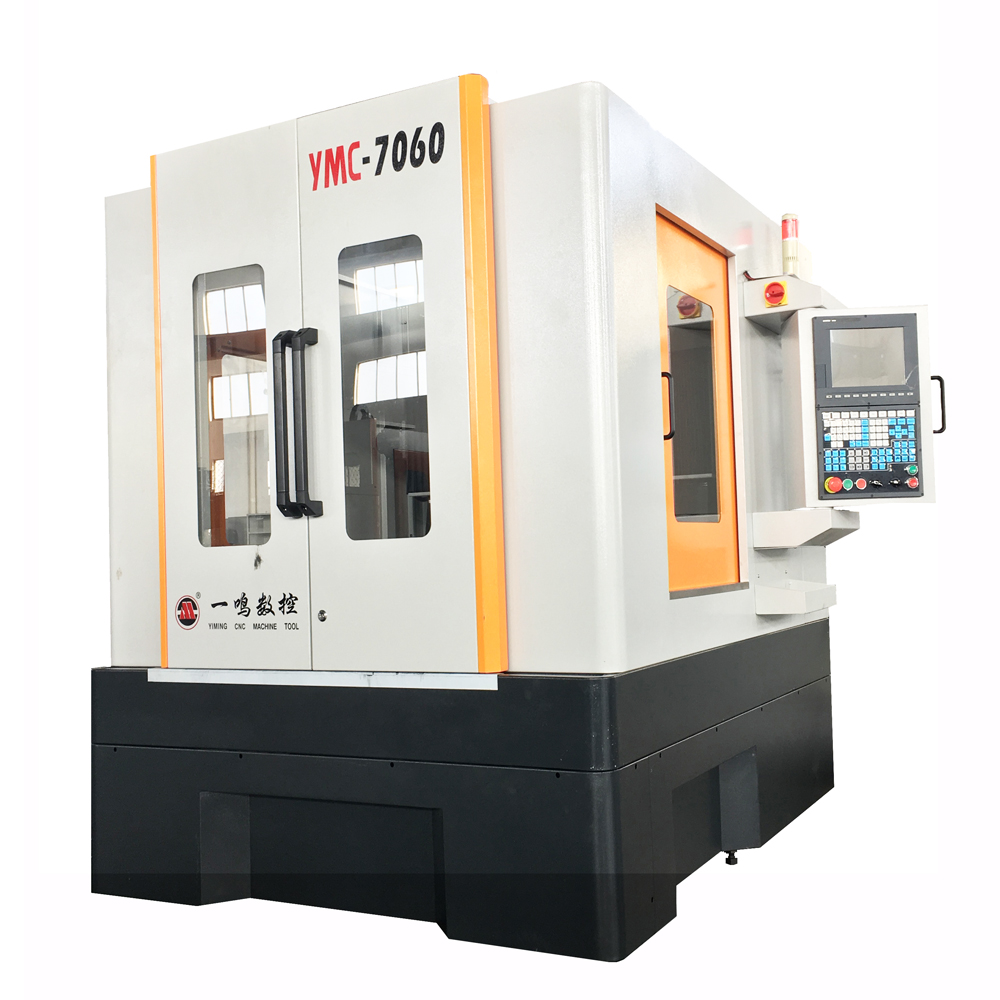

CNC Engraving Milling Machine YMC-4535 ~ YMC-1210
Items | Unit | YMC-4535 | YMC-5040 | YMC-6050 | YMC-7060 | YMC-8070 | YMC-1080 | YMC-1210 |
Travel | ||||||||
X/Y/Z Travel | mm | 350×450×150 | 400×500×160 | 500×600×230 | 600×700×270 | 700×800×300 | 850×1050×350 | 1200×1000×400 |
Spindle Nose to table(Appr.) | mm | 300 | 310 | 360 | 360 | 390 | 460 | 550 |
Distance between Column(Appr.) | mm | 500 | 600 | 660 | 730 | 860 | 950 | 1200 |
Table | ||||||||
Table Size | mm | 500 × 385 | 570 × 470 | 600 × 585 | 660×600 | 800×700 | 1000×795 | 1200×1000 |
Max.Loading | KG | 150 | 150 | 300 | 300 | 600 | 600 | 1500 |
Distance between Column | mm | 500 | 600 | 660 | 730 | 860 | 950 | 1200 |
Spindle | ||||||||
Max.Spindle Speed | rpm | 30000 | 24000 | 24000 | 24000 | 18000 | 18000 | 18000 |
Spindle motor power | KW | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 8 | 8 |
Spindle Taper | ER16 | ER20 | ER25 | ER32 | ER32 | ER40 | ER40 | |
Feedrate | ||||||||
Rapid feedrate(X/Y/Z) | m/min | 7.5/7.5/7.5 | 7.5/7.5/7.5 | 7.5/7.5/7.5 | 7.5/7.5/7.5 | 15/15/7.5 | 15/15/7.5 | 15/15/7.5 |
Cutting feedrate | m/min | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Accuracy | ||||||||
Positioning Accuracy | mm | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 | ±0.008/300 |
Re-Positioning Accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
Others Item | ||||||||
Input Voltage | Volt | 220V~440V | 220V~440V | 220V~440V | 220V~440V | 220V~440V | 220V~440V | 220V~440V |
Machine Footprint(L×W) | mm | 1600×1600 | 1600×1600 | 1950×1800 | 2050×1950 | 2300×2050 | 2600×2200 | 3100×2350 |
Machine Height | mm | 1900 | 1900 | 2200 | 2300 | 2400 | 2550 | 2900 |
Weight | T | 1.5 | 1.8 | 2.3 | 2.6 | 3.5 | 5.1 | 6.8 |
CNC Controller | LNC528 | LNC528 | LNC528 | LNC528 | LNC528 | LNC528 | LNC528 | |
STANDARD ACCESSORIES | |||||
1 | LNC 528 CNC Controller | 10 | Spindle Oil Cooler | ||
2 | Full enclosed splash guard | 11 | Electrical Cabinet | ||
3 | High Speed Motorized Spindle | 12 | Electronic Hand wheel(MPG) | ||
4 | Coolant Nozzle | 13 | Leveling bolts and blocks | ||
5 | Safety Door | 14 | Operating pannel box | ||
6 | Automatic lubrication system | 15 | LED Working lamp | ||
7 | Cutting fluid system | 16 | Alarm Lamp of program ending | ||
8 | Air pressure system | 17 | Operation & CNC Manual | ||
9 | 3 Axis Linear Guide rails | 18 | Transformer(According to User’s Local Voltage) | ||
SOURCE OF MAIN COMPONENTS | ||||||
NO. | COMPONENT | BRAND | ORIGIN | SPECIFICATION | ||
1 | CNC Controller | LNC | Taiwan | |||
2 | Spindle | Maxtors | China | |||
3 | Spindle Oil Cooler | Rucol | China | |||
4 | Linear guideway | HIWIN/PMI | Taiwan | |||
5 | Ballscrew | HIWIN / PMI | Taiwan | |||
6 | Servo system | YASKAWA | Japan | |||
7 | Ballscrew bearing | HXB | China | |||
8 | Servo Transformer | JUHVER/SUENNLIANG | China | |||
9 | Servo Coupling | KTR | German | |||
10 | Lock Nut | YINSH | Taiwan | |||
11 | Portable Electronic handwheel (MPG) | TOSOKU | Japan | |||
12 | Machine Cover Sheet | MAXTORS | China | |||
Note：We reserve the rights to adjust the brand According to the supply situation ,but not less than the Quality of original brand .
