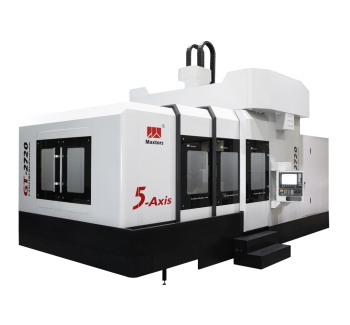

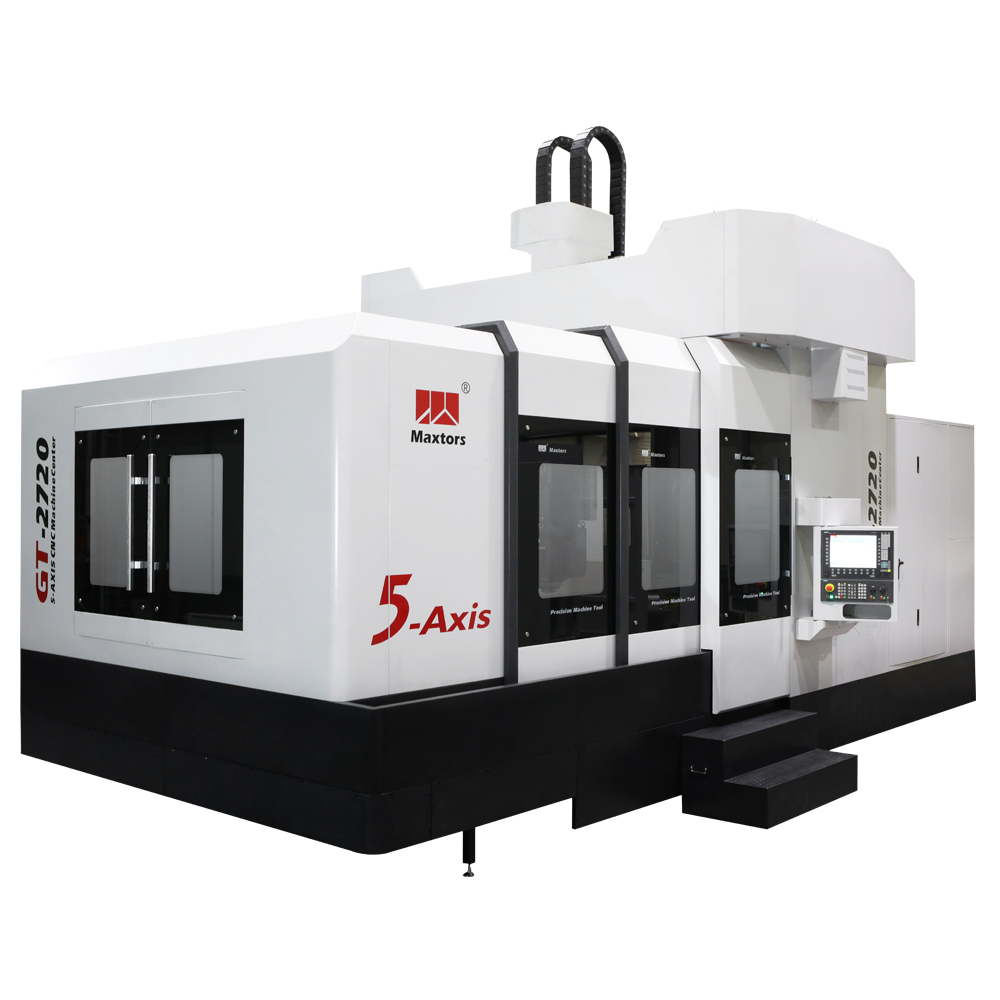

Double Column 5 Axis CNC Milling Machine GT-2720
5 Axis Gantry CNC Machining Center
Item | Unit | GT-2720 |
Worktable | ||
Worktable Size | mm | 2800×1600 |
Max.Loading on Table | KG | 10000 |
Travel | ||
X Axis Travel | mm | 2700 |
Y Axis Travel | mm | 2000 |
Z Axis Travel | mm | 900 |
A Axis | ° | ±110° |
C Axis | ° | ±270° |
Spindle Nose to Table | mm | 160-1060 |
Distance between Column | mm | 1980 |
Feed System | ||
XYZ Rapid Feed | m/min | 20/20/20 |
Cutting Feed | m/min | 12 |
XYZ Axis Ballscrew dia. | mm | Φ80/Φ63/Φ63 |
XYZ Axis Guideway Width | mm | 65/55/55x4 |
Accuracy | ||
Positioning Accuracy | mm | ±0.008/300 |
Re-Positioning Accuracy | mm | ±0.005/300 |
A Axis | “ | 10“/8“ |
C Axis | “ | 8“/6“ |
Spindle | ||
Spindle Speed | rpm | 20000 |
Spindle Taper | HSK-A63 | |
Others | ||
Air Requirements | kg/c㎡ | ≥6 |
Machine Weight | KG | 38500 |
CNC Controller | SIEMENS | |
Standard Configuration
● SIEMENS CNC system
● 3 axis Linear guide way
● HSK-A63 20000rpm High Speed Bi-Rotary Spindle
● Spindle Cooling system
● Cooling system for electrical cabinet
● Double Screws type chip conveyor +Chain type Chip Conveyor
● Auto oil lubrication system
● Tri-color light
● Air gun + water gun
● Lighting lamp
● Full enclosure splash guard
● Telescopic covers (3 axis)
● Standard accessories
● Technical documents
● Basal installation kit
Main Components
No. | items | Brand | Origin |
1 | CNC Controller | SIEMENS | Germany |
2 | X/Y/Z Axis Motor | SIEMENS | Germany |
3 | Ballscrew | HIWIN/PMI | Taiwan |
4 | Roller Linear Guideway | HIWIN/PMI/REXROTH | Taiwan/Taiwan/Germany |
5 | Spindle | Maxtors | China |
6 | Spindle Oil Cooler | TNP/RUCOL | China |
7 | Water Pump | Luikar | China |
8 | Servo coupling | R+W/KTR | Germany |
9 | Lubrication System | HERG | China |
10 | Electric System major component | Schneider/Siemens | France/Germany |
11 | AC For Electric Cabinet | RUCOL/FREE | China |
12 | MPG | TOSOKU/NEMICON | Japan |
13 | Transformer | JUHVER/SUENNLIANG | China |
14 | Outer Guard Cover | MAXTORS | China |
Note：We reserve the rights to adjust the brand According to the supply situation ,but not less than the Quality of listed brand
