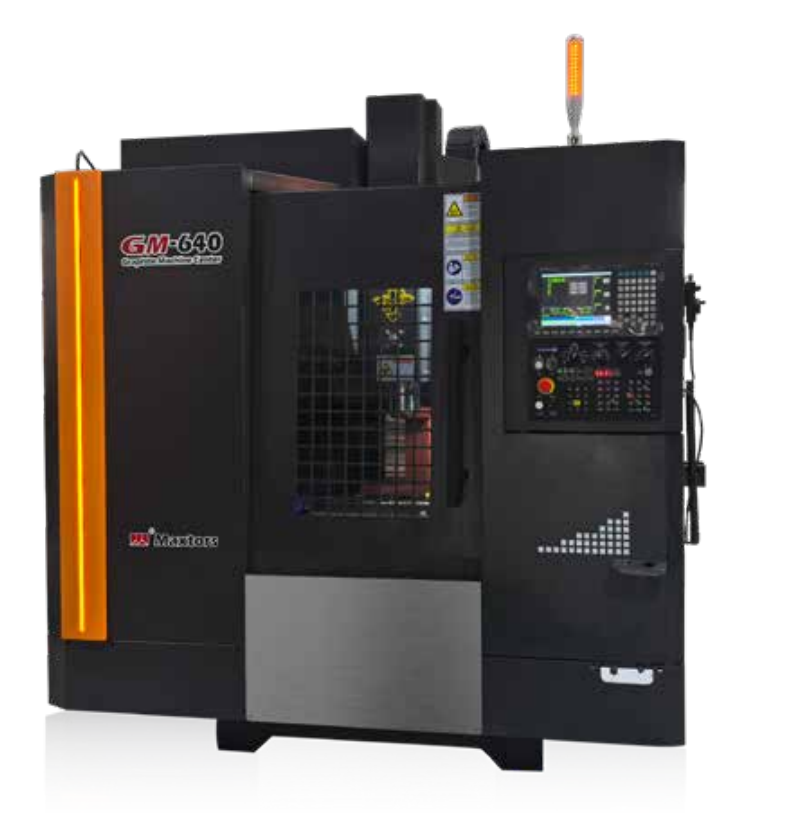

CNC Graphite Machine Center GM-640
Item | Unit | GM-640 |
Travel | ||
X Axis Travel | mm | 600 |
Y Axis Travel | mm | 400 |
Z Axis Travel | mm | 450 |
Spindle Nose to Table (appro.) | mm | 120-570 |
Worktable | ||
Worktable Size | mm | 700×420 |
Max.Loading on Table | KG | 350 |
Spindle | ||
Spindle Speed | rpm | 15000 |
Spindle Taper | BT40 | |
Feedrate | ||
XYZ Rapid Feed | mm/min | 36000 |
Cutting Feed | mm/min | 1~10000 |
ATC | ||
Capacity | Stations | 24 |
Oil Air System | ||
Lube Tank | L | 4 |
Coolant Tank Capacity | L | 200 |
Air Pressure | kg/cm2 | 5~8 |
Others | ||
Machine Weight | KG | 4000 |
CNC Controller | SYNTEC |
Standard Configuration
● High Speed Spindle
● Spindle Oil Chiller
● XYZ Axis Linear rails
● XYZ Axis Servo Motor
● 24T ATC
● Fully Enclosed Splash Guard
● Data transfer interface
● Automatic lubrication system
● Cutting Coolant system
● LED working lamp
● End of program light
● Portable Electronic handwheel (MPG)
● Leveling bolts and blocks
● Spindle air blast system
● CNC Manual & Operation Manual
● Safety door
● SYNTEC CNC Controller
Optional Configuration
○ The 4th axis rotary table
○ The 5th axis Tilting & Rotary table
○ Linear Scale
○ Dust Cleaner
○ Auto.Tool Measuring system/Tool setter (Auto Tool Length Measuring system)
○ Auto.Workpiece Measuring system
○ LNC/Maxtors CNC Controller
○ FANUC/Siemens/Heidenhain CNC Controller
○ Others Options as requested
